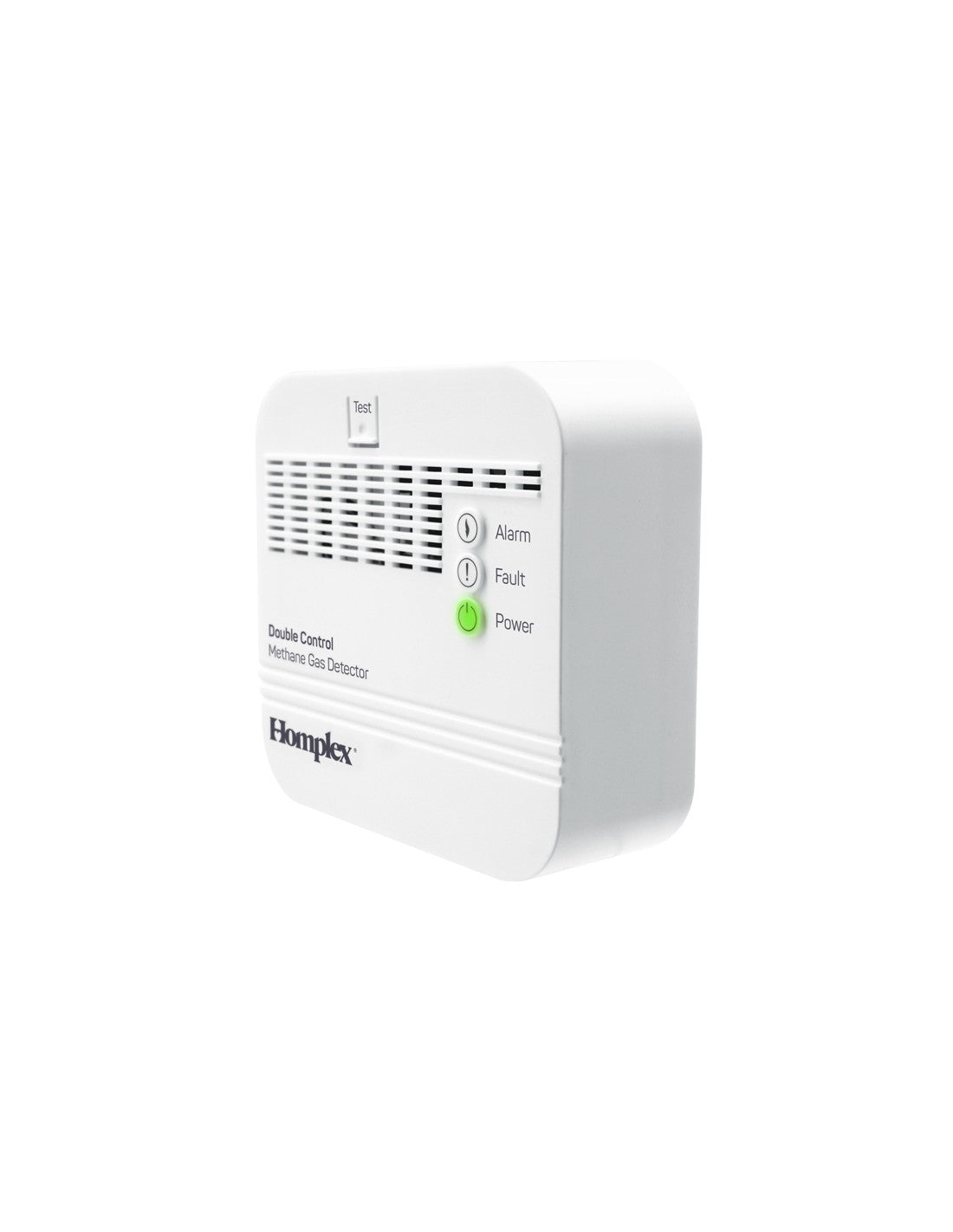

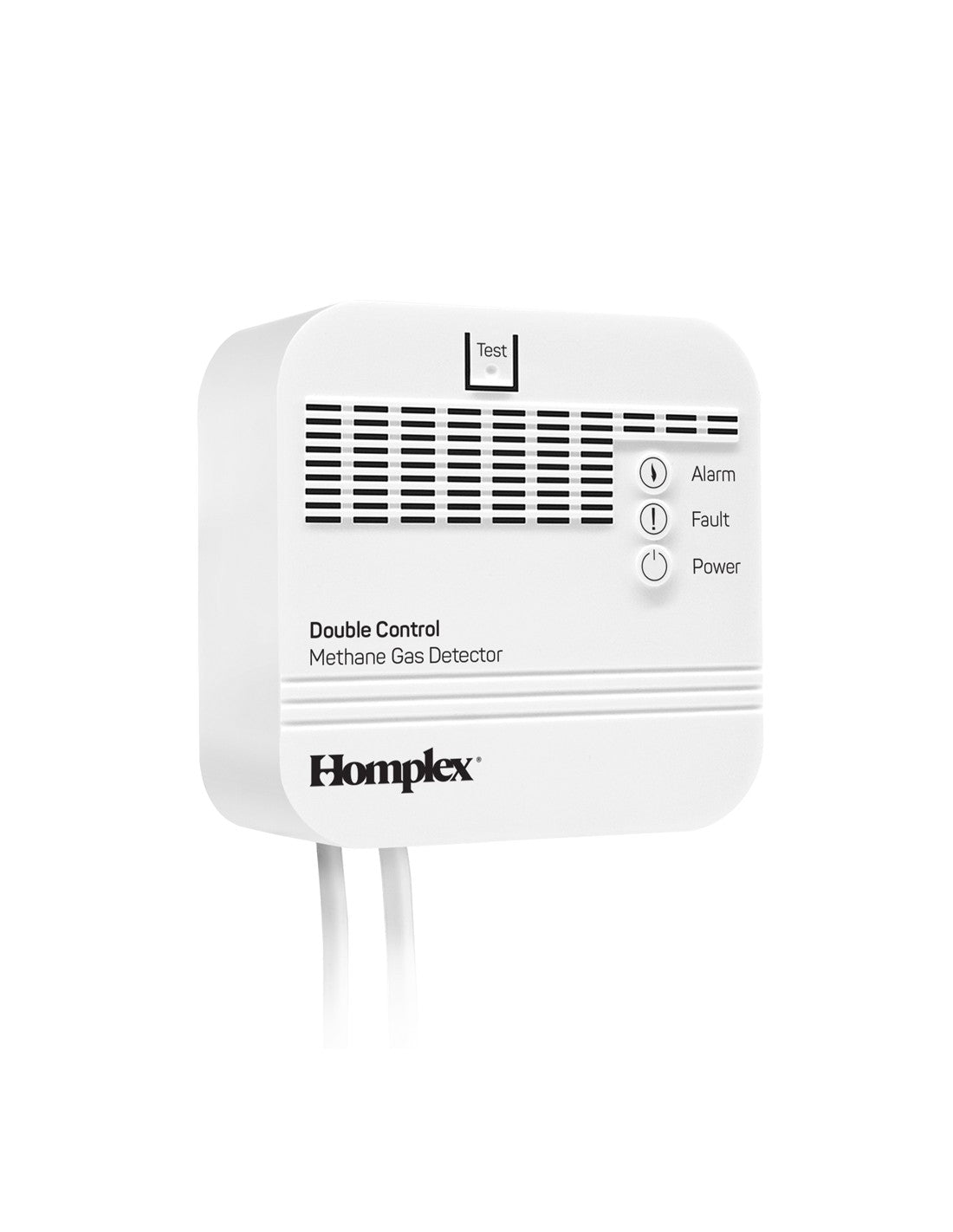

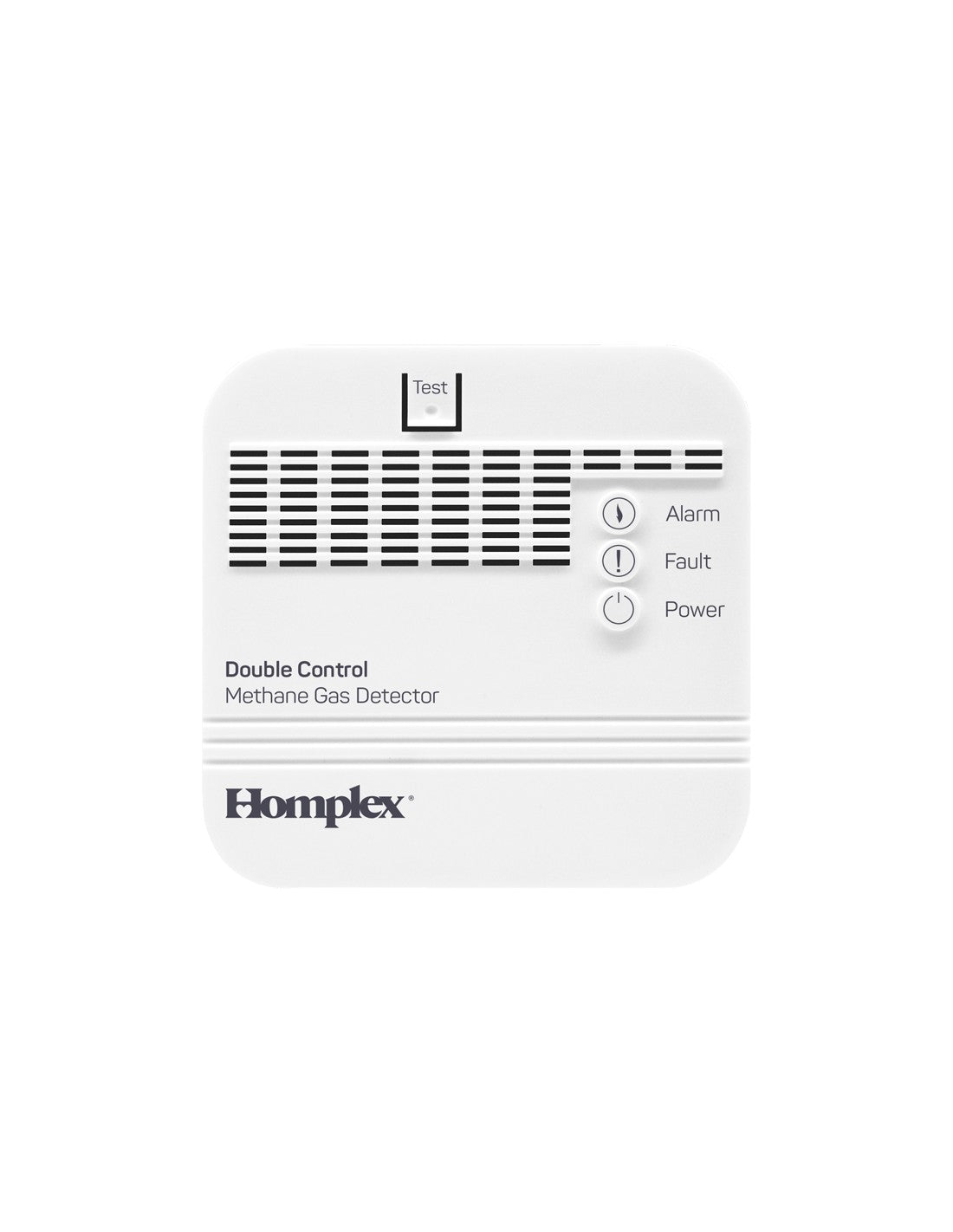

Wired Methane Gas Detector with Dual Trigger 12VDC + 230VAC - Homplex HD100 Double Control

Wired Methane Gas Detector with Dual Trigger 12VDC + 230VAC - Homplex HD100 Double Control is manufactured for industrial fire-fighting, heating, gas and pressurized water installations.

Homplex HD100 Double Control – Methane Gas Detector with Dual Trigger 12 VDC + 230 VAC

Approximate delivery time 10 calendar days

Homplex HD100 Double Control is an advanced methane gas detector, designed in Romania for use in residential and professional environments. It can simultaneously trigger two solenoid valves – one at 230 VAC and another at 12 VDC – ensuring an additional level of protection for the gas installation, including integration into BMS systems.

Key benefits:

• Dual triggering: simultaneous 230 VAC and 12 VDC control
• Detection at only 10% of the lower explosive limit (LEL)
• Loud 85 dB alarm and LED for signaling
• Fast reaction time – under 15 seconds from detection
• Relay contact: 8 A / 250 VAC and 1.5 A / 12 VDC output
• SnO2 semiconductor sensor, minimum lifespan 5 years
• IP42 protection class and durable white ABS casing
• Easy wall mounting, compact dimensions (91 × 91 × 35 mm)

With Homplex HD100 Double Control, you benefit from a complete and reliable solution for detection and rapid intervention, preventing risks associated with methane gas leaks and protecting the integrity of your home or building.
